Sho-Rate™
Glass Tube Variable Area Flow Meters
Reliable, Configurable Flow Measurement for Gas and Liquid Applications
The Sho-Rate™ Series provides reliable visual flow measurement for clean gases and liquids across laboratory, analytical, OEM and industrial applications. Multiple models provide a choice of accuracy, flow range, scale length and control options to match your application.

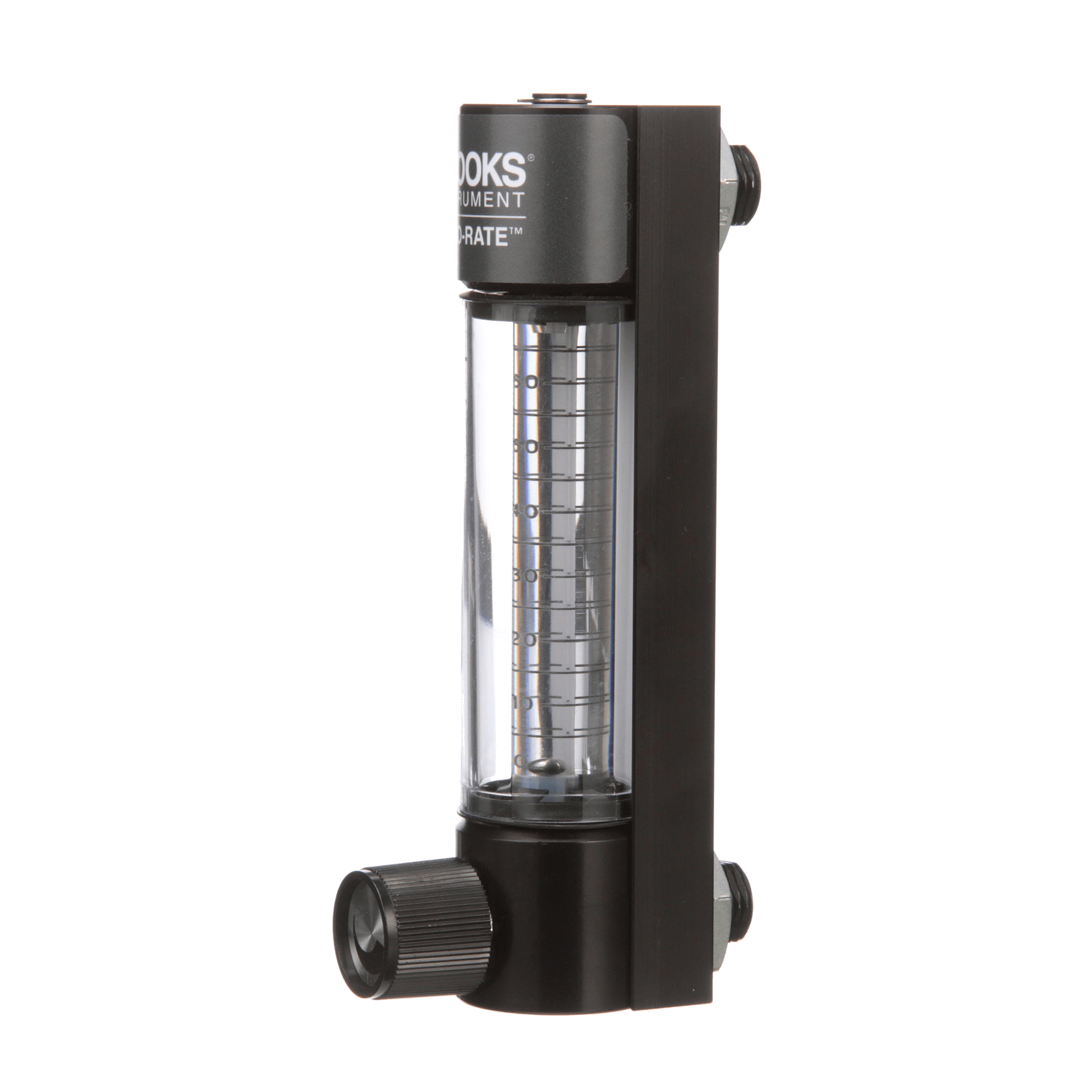

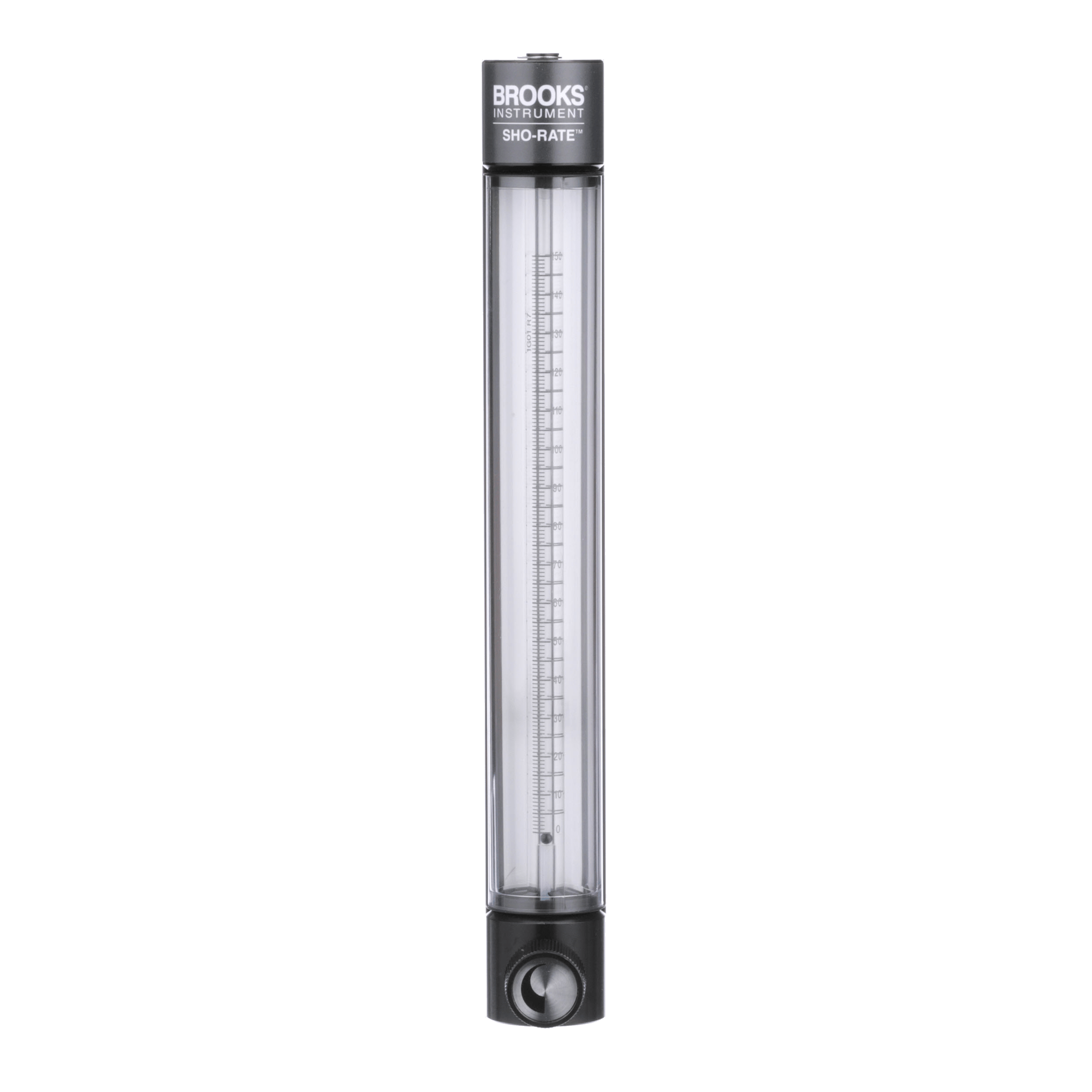

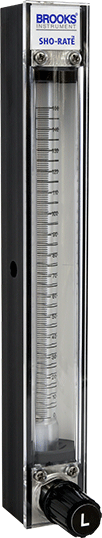

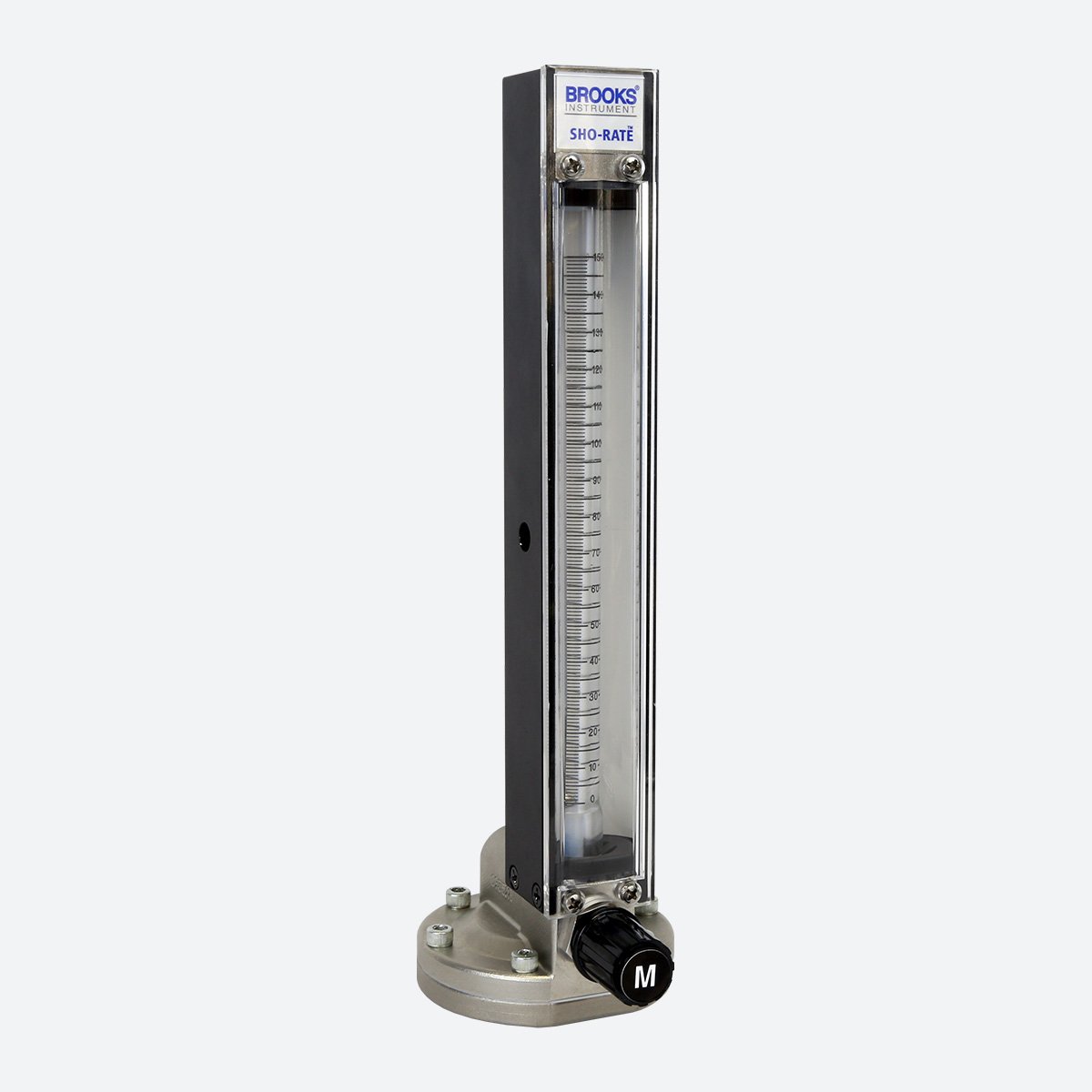

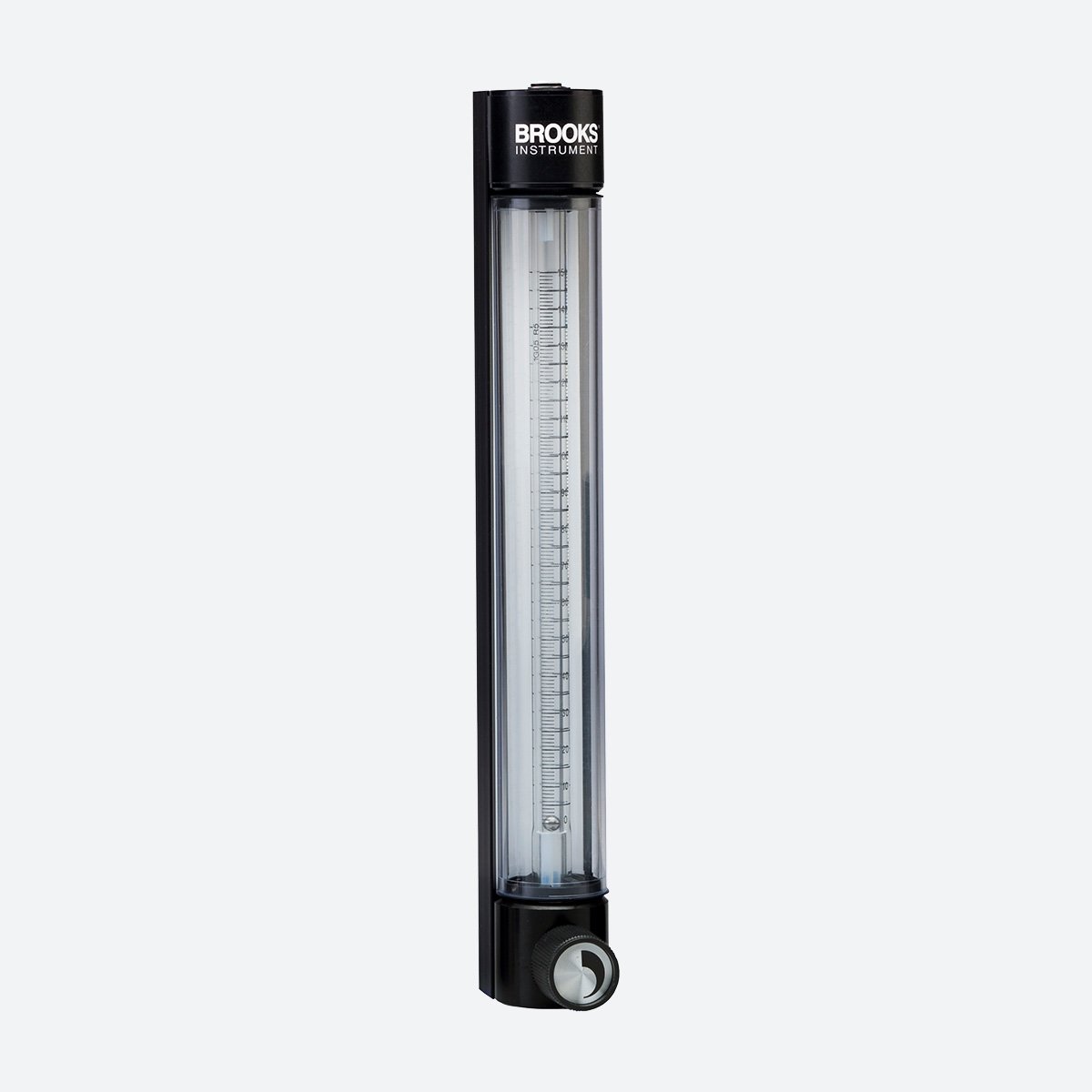

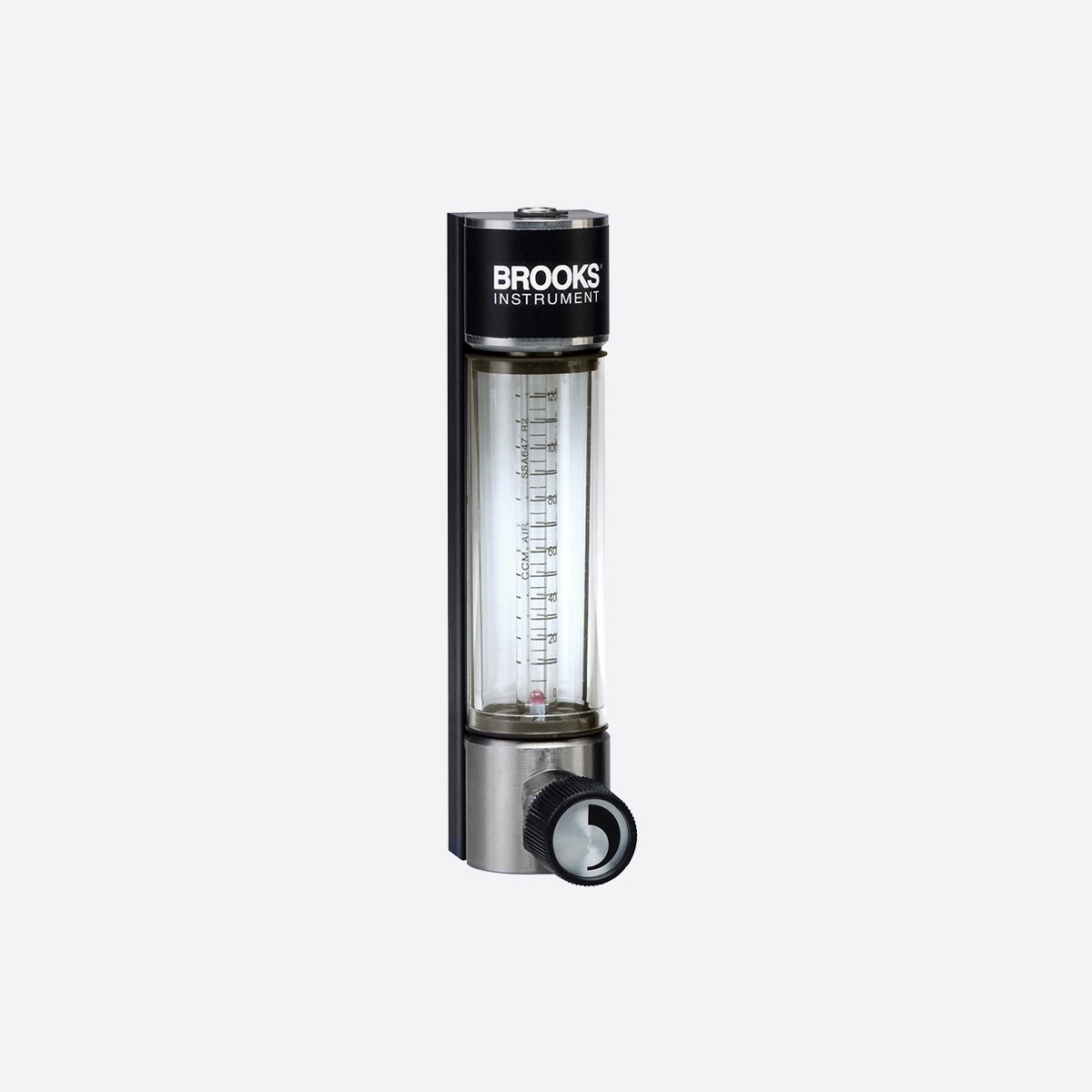

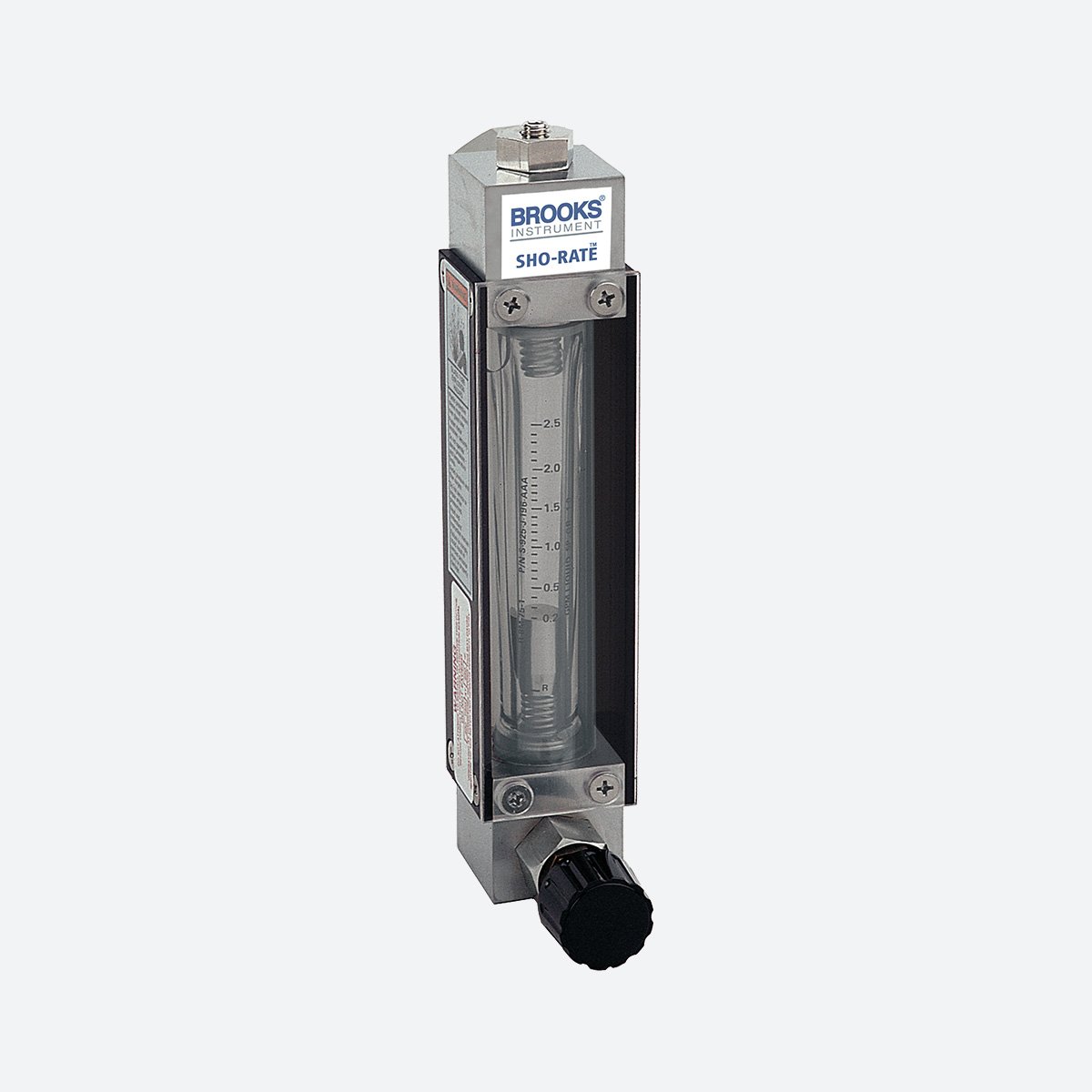

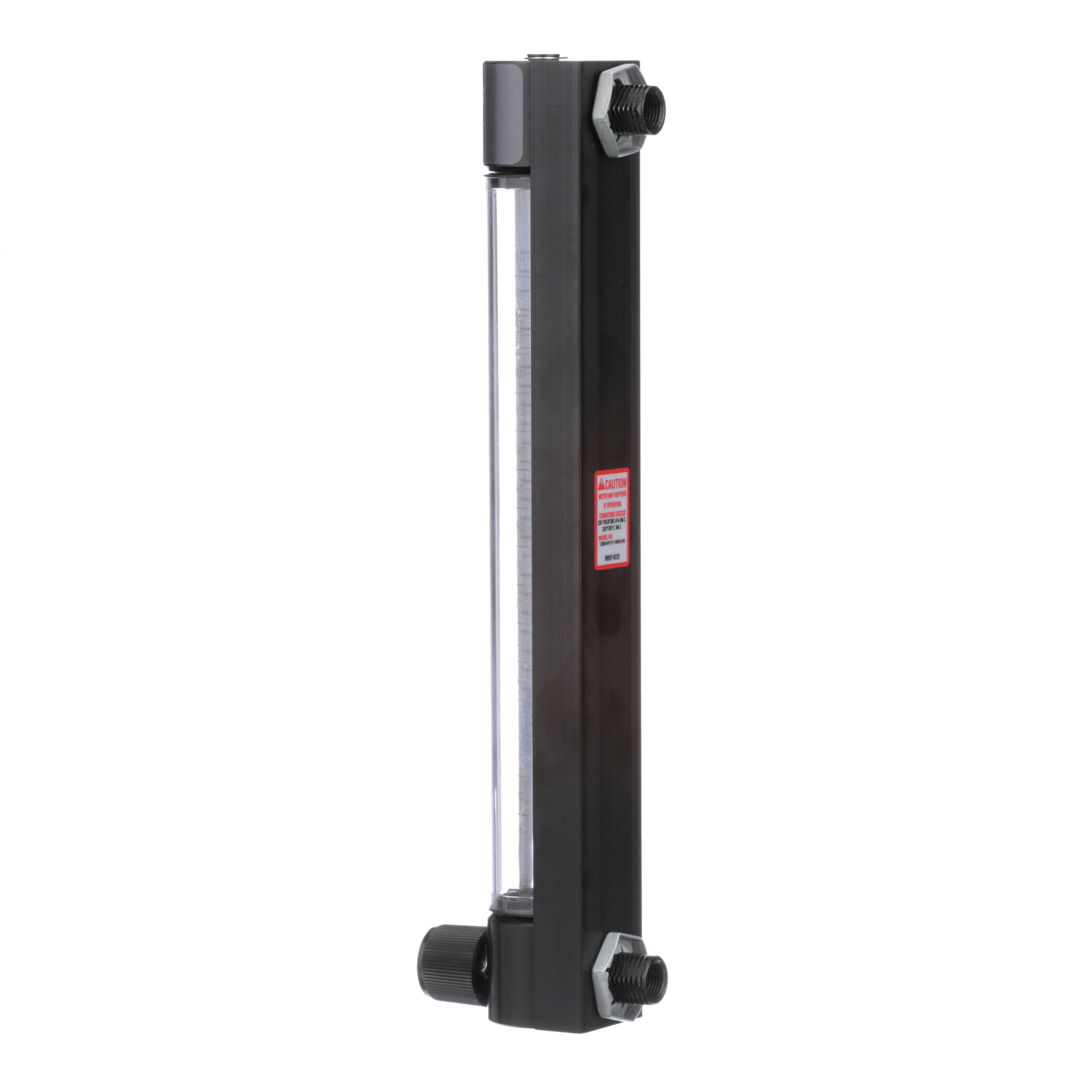

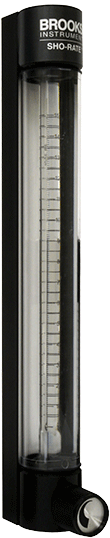

Choose Sho-Rate 1350, 1355 and 1358 models for configurable scales and optional valves, flow controllers and alarms. Sho-Rate 1250 and 1255 models offer a durable, cost-effective design with easy-change tube assemblies and a rotating magnifying lens, making them well suited for OEM and analyzer integration.
Features & Benefits
- Reliable, Repeatable Flow Measurement: Accuracy options from ±3% to ±10% full scale, with repeatability as low as 0.25% full scale depending on model.
- Clear, Easy-to-Read Indication: Magnified viewing and direct-read scale options make it easy to monitor flow at a glance.
- Flexible Material Options: Borosilicate glass metering tubes and multiple float materials support a wide range of gas and liquid applications.

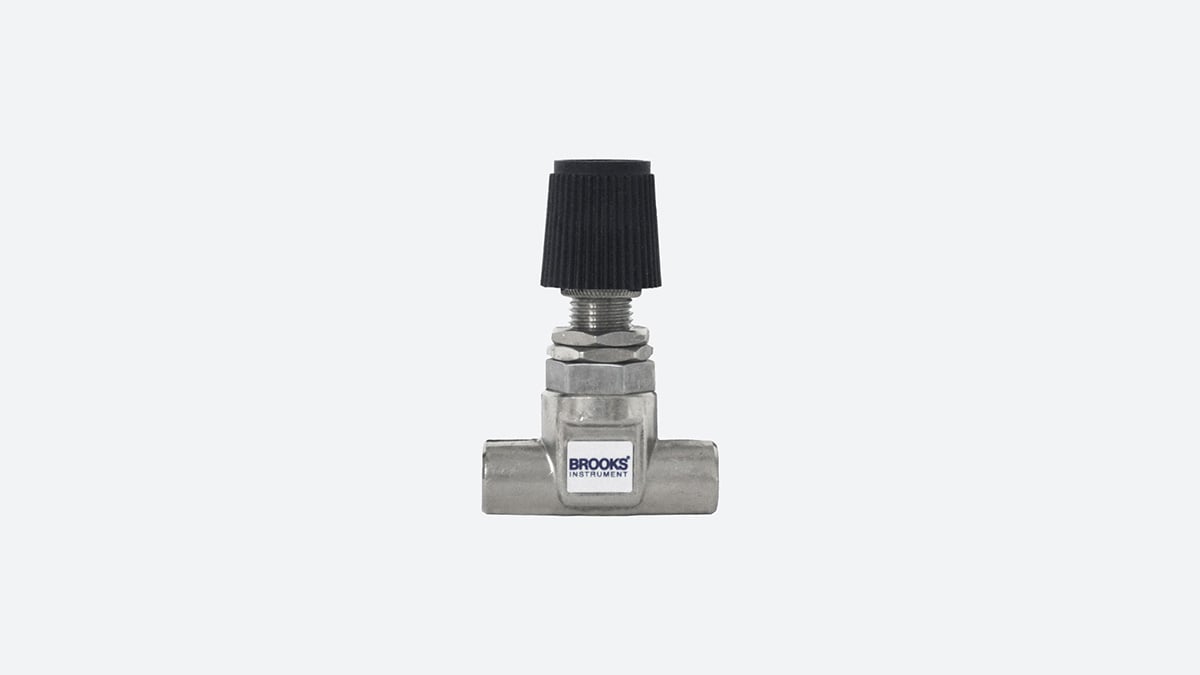

- Integrated Flow Control Options: Optional needle valves and flow controllers can be mounted at the inlet or outlet on select models to add flow control without a separate assembly.

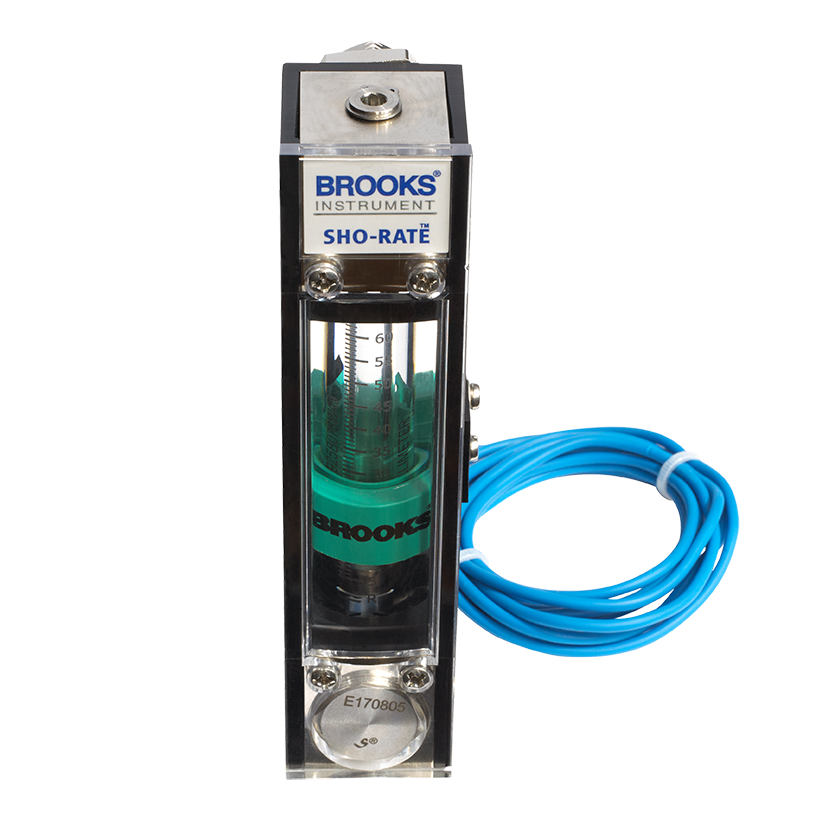

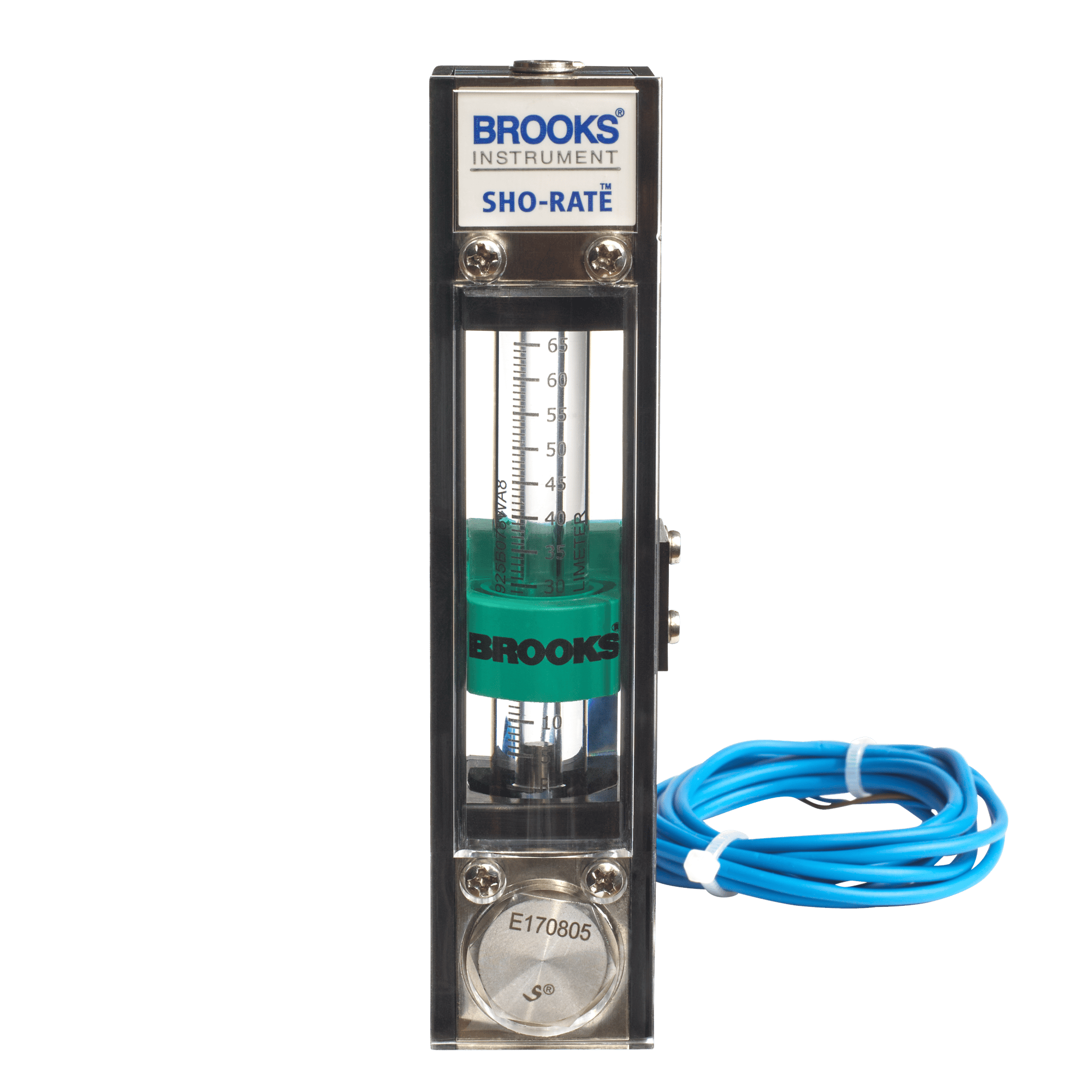

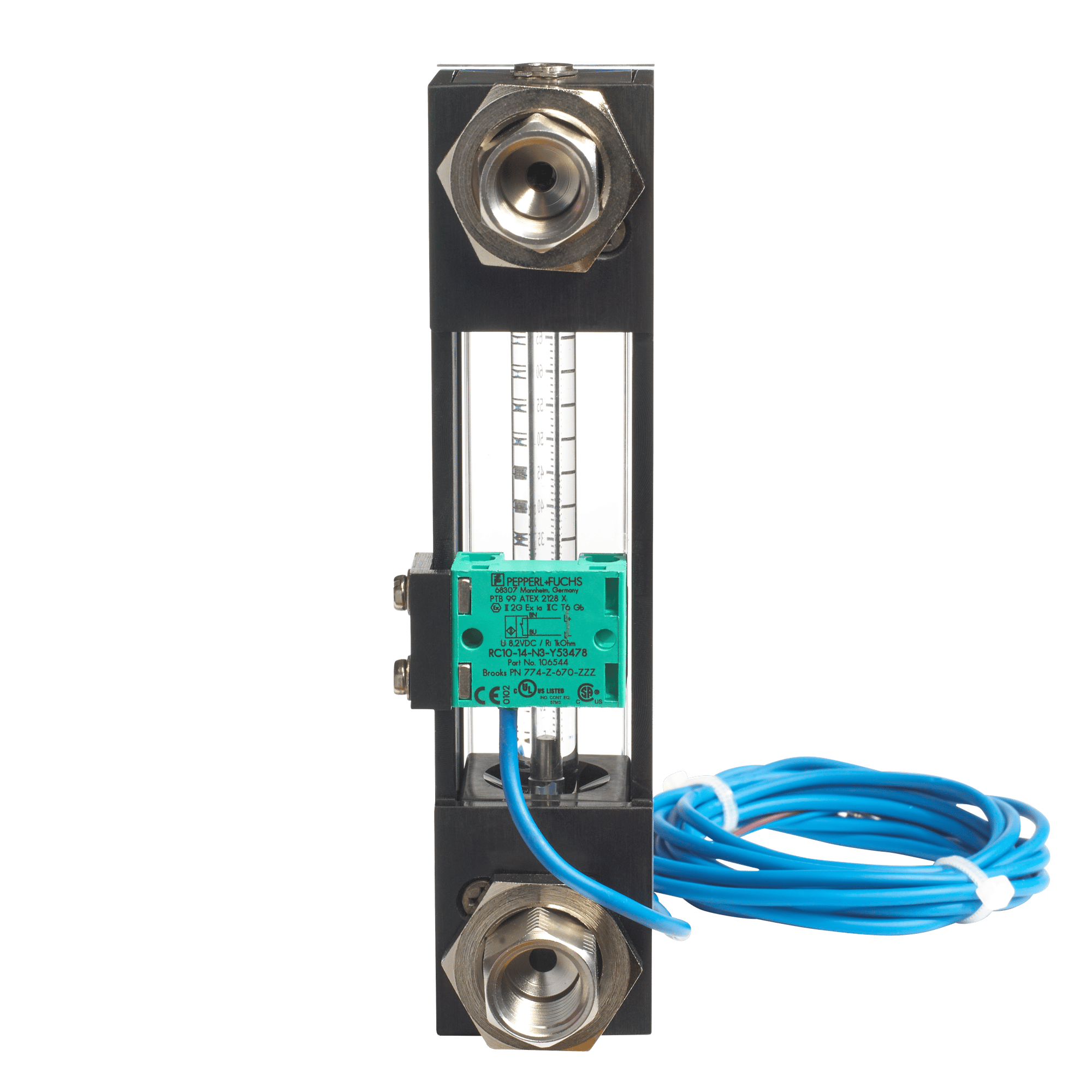

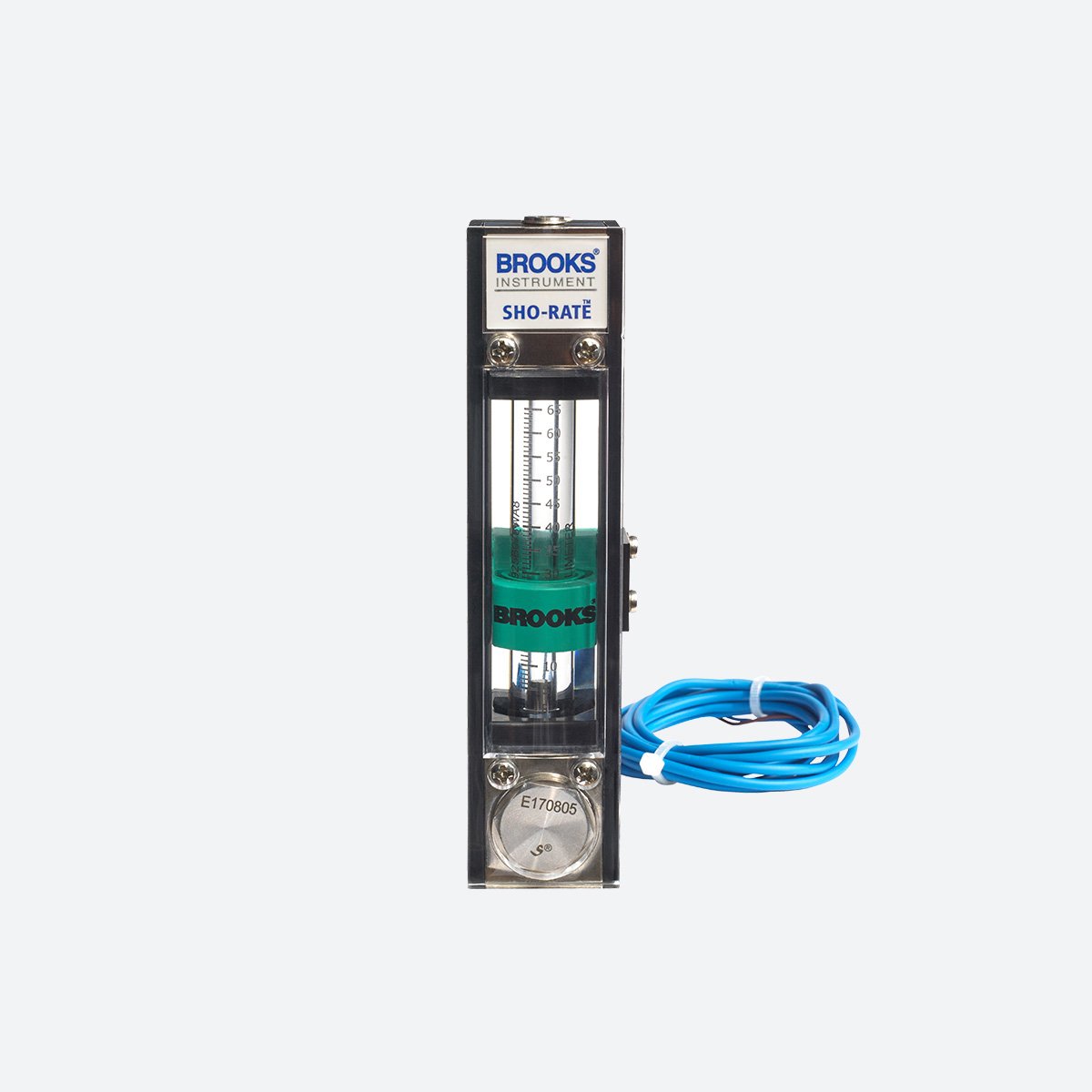

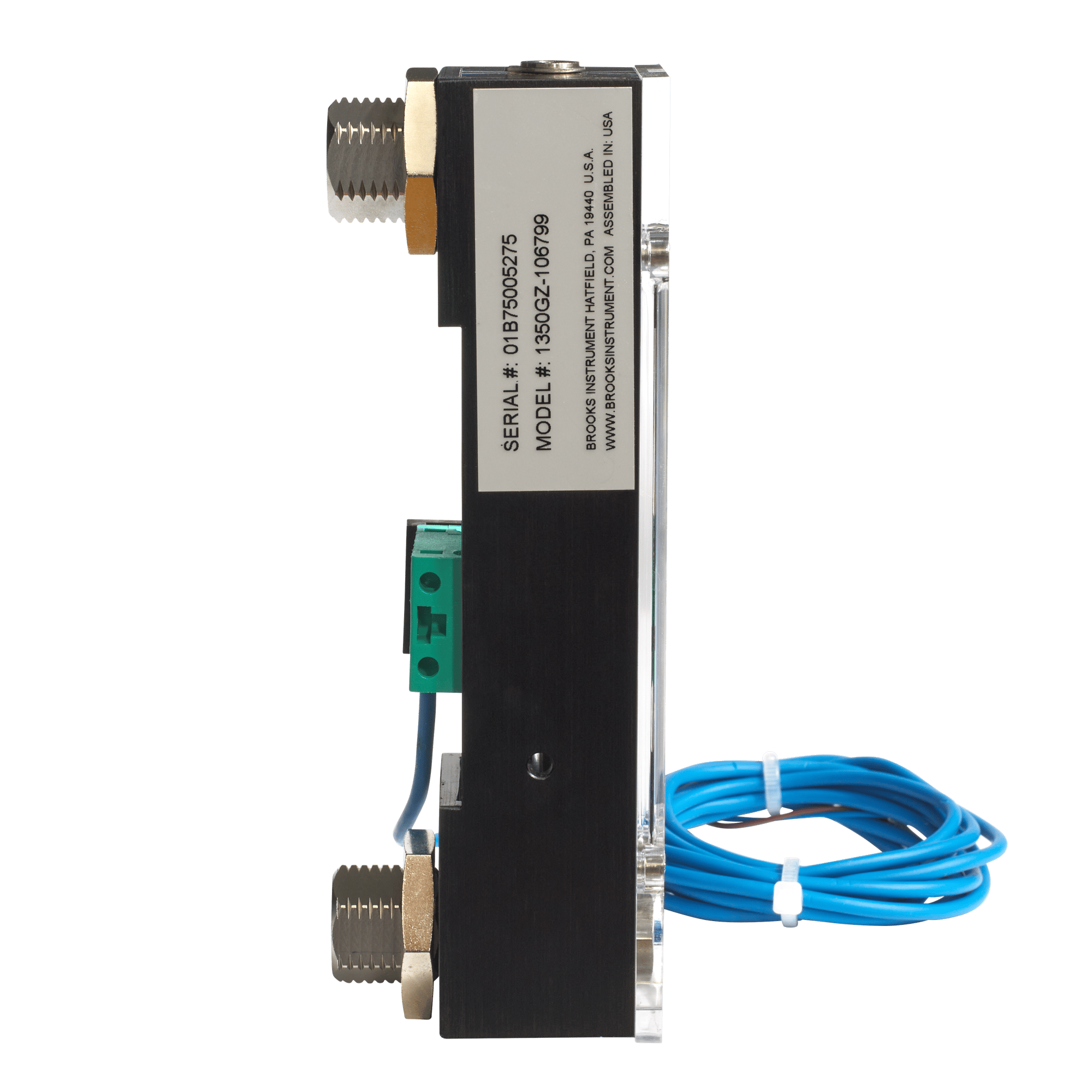

- Optional Flow Alarms: Single or dual inductive ring sensors with an intrinsically safe relay provide additional process monitoring on select 1350, 1355 and 1358 configurations.
- Easy Servicing and Configuration: Interchangeable tube assemblies on select models simplify maintenance and provide flexibility when application requirements change.
- OEM-Friendly Design: Multiple scale, connection and valve options support analyzer systems, panel mounting and application-specific equipment designs.
Applications
- Analytical instrumentation and analyzer systems
- OEM equipment
- Pharmaceutical and biotechnology processes
- Chemical and petrochemical applications
- Research and laboratory flow measurement
- Water treatment and distribution systems
Flow Insights
When Pressure Fluctuations Make a Variable Area Flow Meter Hard to Read
A bouncing float can make a variable area flow meter difficult to read. Learn why changing pressure conditions can affect flow indication and how integrating flow control with a compatible Sho-Rate® flow meter can help maintain more stable flow while minimizing installation footprint.
Read the Flow Insights Article →| Type of Media | Gas / Liquid |
|---|---|
| Flow Measuring Principle | Variable Area (VA) |
| Flow Range | Air: Up to 140 scfh / 63 slpm, Water: Up to 34 gph / 2000 cc/min |
| Accuracy Range | ± 3% - 10% FS |
| Repeatability | 0.25% FS |
| Max Pressure | 200 psi |
| Operating Temperature | 1°C - 121°C |
| Measure/Control | Measure Only (Meter) |
| Max Flow | 425 slpm |
| Max Flow | 424000 sccm |
| Max Flow | 130 l/hr |
| Max Temperature | 121 celsius |
| Max Operating Pressure | 14 bar |
| Accuracy (FS) | ±3% FS, ±5% FS, ±10% FS |
Use the following guide (model code information from data sheet) to translate the CAD configurations available below. If you need assistance or can’t find what you’re looking for, please contact Applications Engineering or your local Brooks Instrument representative.
Example: 1350G - 1 - T - 1 - A
| Meter Series | Fitting & Connection | Valve | Connection Orientation | Options |

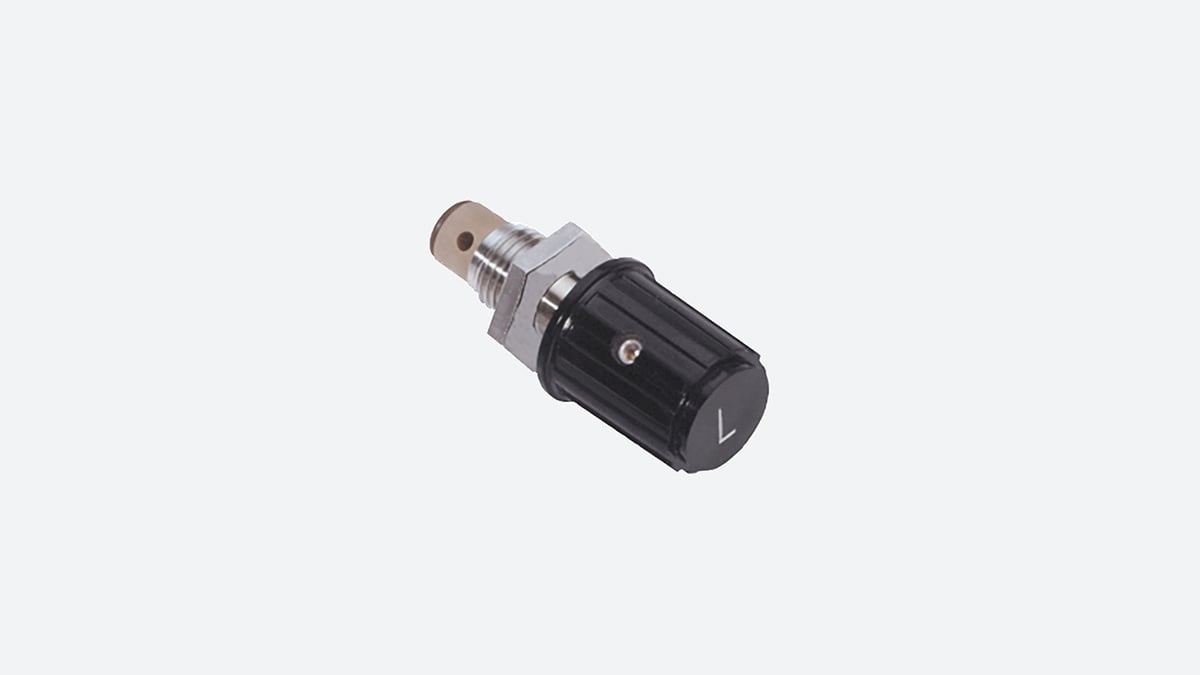

| 1350G | 1 - 316SS 1/4" Compression w/locknut (2 pc design) | T - Cartridge II/III Valve - Low Flow - 316SS | 1 - Valve/Controller Location = Inlet, Connection Orientation = Back | A - None |
