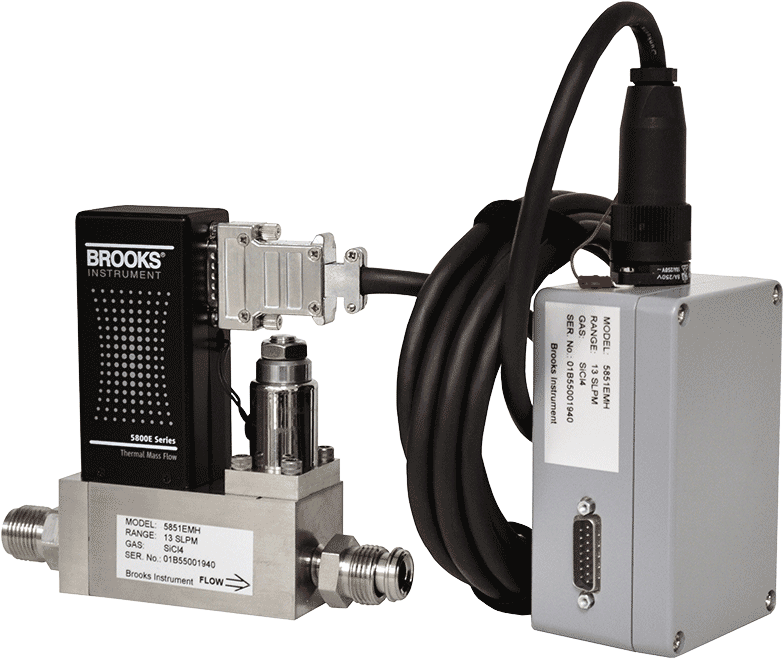

MODELS: 5850EMH / 5851EMH
5850EMH Metal Sealed High-Temperature Mass Flow Controllers
Proven long-term stability. Ultra-pure performance for high temperature applications.
Offering state of the art performance in high temperature gas measurement and control, the 5850EMH Series high temperature metal sealed mass flow controller from Brooks Instrument combines the outstanding leak integrity of metal seals with a variety of options allowing maximum application flexibility. The heart of the 5850EMH Series is the highly stable sensor which provides an electrical output signal linear with flow rate. This signal is used for indicating, recording and/or control purposes without the need for an auto-zero circuit.
Features
- High leak integrity (less than 10-11 Pa.m3/s (10-10 atm.cc/s) He)
- Wide flow range (0.003 – 100 slpm)
- High-purity VAR 316L Stainless Steel
- Particulate-free
- Helium leak check ports
- Normally closed valve (normally open valve optional)
- Electrically-activated valve override
- Low command flow cutoff
- TTL compatible “valve off” function
Applications
- Optical Fiber Manufacturing – MCVD, OVD, AVD
- Water Vapor Flow Control
Benefits
- Stable, proven product platform
- High flow capability up to 100 lpm (N2 equivalent)
- All-metal flow path enhances gas purity and reduces leaks
- Easily installed and serviced with analog only input/outputs
| Type of Media | Gas/Vapor |
|---|---|
| Flow Measuring Principle | Thermal (TMF) |
| Flow Range | 0.003 - 100 slpm |
| Accuracy Range | 1% of FS |
| Repeatability | ±0.25% of rate |
| Max Pressure | 145 psi |
| Operating Temperature | 50°C - 105°C |
| Measure/Control | Measure & Control (Controller) |
| Max Flow | 100 slpm |
| Max Operating Pressure | 10 bar |
| Max Temperature | 105 celsius |
| Seal Option | Metal |
| Accuracy (FS) | ±1% FS |
| Connectivity | Analog (0–5 V) |
