Flow Fundamental Technologies: Thermal Principle

Thermal mass flow measurement is based on a simple but powerful principle: the relationship between heat transfer and fluid movement. As gas flows across a heated sensor, it removes heat in proportion to the mass of gas passing through. By continuously monitoring how much energy is required to maintain a stable temperature, the instrument can directly determine mass flow with a high degree of precision.

This method enables accurate, real-time measurement without relying on pressure or temperature compensation, making thermal mass flow controllers a dependable solution for applications where consistency and control are critical.

Overview

What is Thermal Mass Flow?
Understanding the Science Behind Thermal Mass Flow
Why Choose Thermal Mass Flow?
Explore Thermal Mass Flow Applications

Thermal mass flow measurement leverages the direct relationship between a fluid’s thermal properties and its mass to deliver accurate, reliable flow data. Because it measures mass flow rather than volume, the result is inherently independent of changes in temperature or pressure—making it especially valuable in processes where mass, not volume, defines performance.

At the core of this approach is specific heat capacity, a fundamental property that determines how much heat a fluid can absorb. As gas flows through the sensor, the amount of heat it carries away is directly proportional to its mass flow rate. By correlating applied heat, temperature change, and the fluid’s thermal characteristics, thermal mass flow controllers provide a straightforward and highly precise method for measuring and controlling flow in both production and R&D environments.

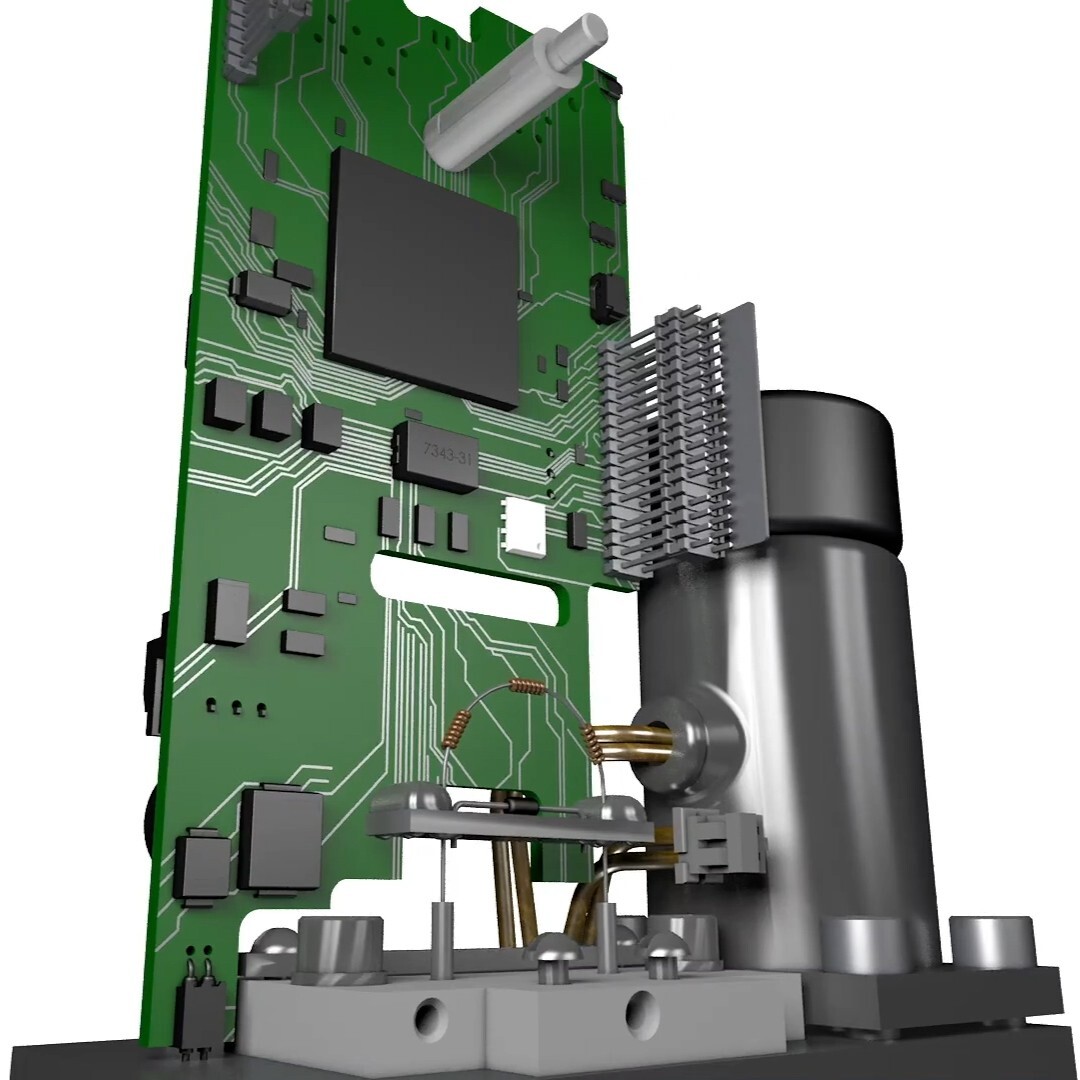

Thermal mass flow measurement is based on the fundamental relationship between heat transfer and the mass of a moving fluid. Within a thermal mass flow controller, a portion of the gas is directed across a heated sensor element. As the gas molecules pass over this surface, they absorb and carry away heat. The rate of heat removal is directly proportional to the number of molecules flowing past the sensor—that is, the mass flow rate.

To quantify this, the instrument either measures the temperature difference between sensors positioned upstream and downstream of the heater, or the amount of energy required to maintain a constant temperature profile. In both cases, the underlying physics is the same: fluids with greater mass flow remove more heat, creating a measurable and repeatable signal. Because this relationship is rooted in the gas’s thermal properties, such as specific heat capacity and thermal conductivity.

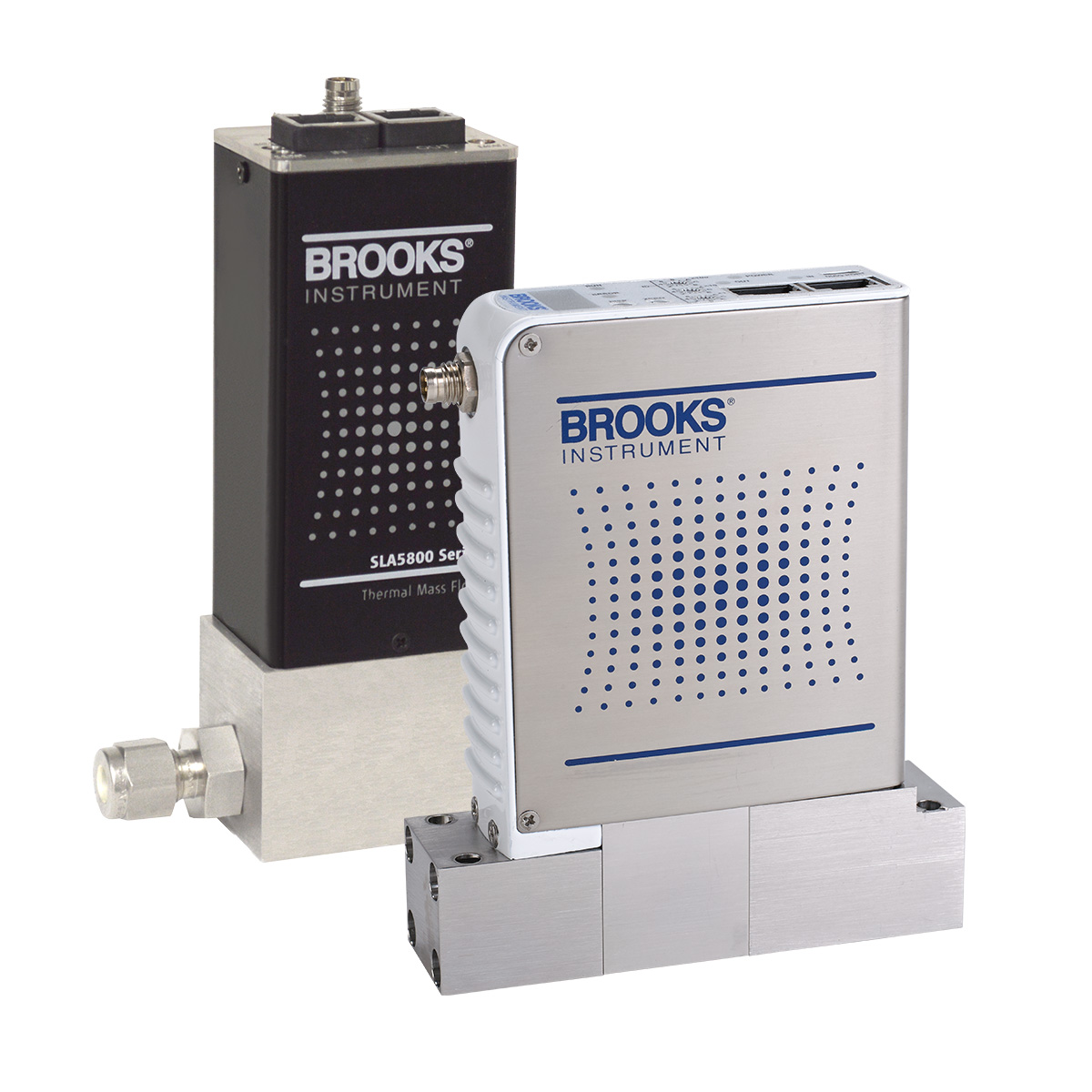

Thermal mass flow controllers, like the SLA5800 series, are a proven choice for applications that demand precise, stable, and repeatable gas flow control. Because they measure mass flow directly through heat transfer, they eliminate the need for additional pressure and temperature compensation—simplifying system design while improving overall accuracy.

This technology is especially well suited for clean, single-gas applications where consistency is critical. With fast response times and excellent low-flow sensitivity, thermal mass flow controllers, including the GF100 series, enable tight control in processes such as gas blending, analytical instrumentation, and semiconductor manufacturing. Their reliability, combined with a well-established measurement principle, makes them a trusted solution across a wide range of industrial and laboratory environments.
