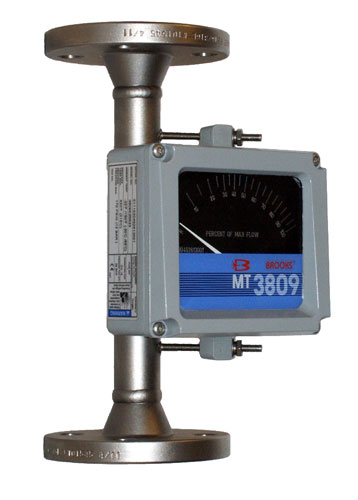

The MT3809 Flow Meter Hits New Lows

I'm really excited to announce the availability of a low flow rate option for our Model MT3809 armored rotameters. The MT3809 variable area flow meter is now capable of accurately measuring flow rates as low as 5 L/h of air and 0.08 L/h of water with this new option. We've had customers requesting this new option but the real advantage is that we now have HART communications for a low flow armored flow meter. The Brooks Model MT3809 rotameter is ideal for high pressure, high temperature and other demanding applications where safety is a concern like in the chemical and petrochemical industries. They provide ± 2% full scale flow accuracy, and are capable of measuring high and low temperature fluids. Other options available with the new low flow option include:
  • HART communications available from very low to high flow ranges.
  • 316 stainless steel indicator housing suited for corrosive atmosphere applications.
  • Transmitter option available for low flow, high temperature applications with process fluid temperatures to 150°C/300°F.
  • Leak points are eliminated because elastomers are not required for flanged meters.
  • Low flow, high pressure capacity can handle pressures to 6,000 PSIG/400 bar.
Model MT3809 variable area flow meters are a good fit for engineering applications because they can handle both high and low flow rates.

About The Author

Jim Dillon
Global Product Manager

Jim is the global product manager for variable area products (rotameters) at Brooks Instrument.
